How Revolution Solar Hot Water System Works

The solar hot water system is designed to operate automatically, taking advantage of solar energy when it is available.

The system will turn on when solar energy can be added to the water heater. The solar controller will activate the circulation module which will push water up to the solar collector(s) and begin circulation. When solar energy becomes unavailable or when heated water is not required, the system will turn off and all water will gravity drain into the drainback tank so the water cannot freeze on your roof or in your attic.

**Revolution has been designed to work with both electric and natural gas water heaters

System Off

System turns off when solar energy cannot be added to the water heater

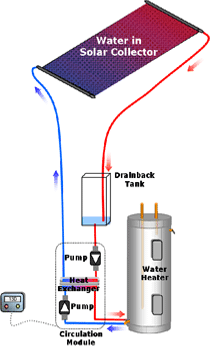

System On

System turns on when solar energy can be added to the water heater
